United Broach operates an ISO 9001:2015 certified manufacturing facility in Patiala, Punjab, equipped with CNC grinding systems, dedicated spline grinding setups, PVD coating capability and precision inspection equipment.
Since 2005, United Broach has invested in advanced grinding, coating and inspection infrastructure at our Patiala facility, enabling us to manufacture export-grade broaching tools and gauges with consistent precision and reliable turnaround.
United Broach's manufacturing facility is located at D-220, Focal Point, Patiala — an established industrial zone in Punjab known for precision engineering and tooling manufacturing. The facility houses our complete production sequence: material preparation, CNC profile grinding, heat treatment coordination, PVD coating, and final dimensional inspection before any tool is approved for dispatch.
Our infrastructure investment reflects a long-term commitment to manufacturing quality. Rather than relying solely on manual processes, United Broach has built a CNC-driven grinding capability that ensures tooth form, pitch and lead accuracy remain consistent from the first piece in a production batch to the last.
Manufacturing precision tooling is only half the equation — verifying that precision is equally critical. United Broach's inspection department is equipped with optical profile projectors for verifying tooth form and profile accuracy, gear tooth measuring instruments for checking pitch and lead on spline broaches, and height gauges and micrometers for precise dimensional checks.
Every tool manufactured or reconditioned at United Broach passes through this inspection sequence before approval for dispatch, with inspection records maintained as part of our ISO 9001:2015 certified quality management system. This traceability gives customers confidence that the tooling they receive matches the approved specification, batch after batch.
United Broach's quality management system is certified to ISO 9001:2015, covering design and development review, production planning and control, incoming material verification, in-process and final inspection, and structured handling of customer feedback and corrective actions. This certification reflects a systematic approach to quality rather than ad-hoc inspection, giving customers — particularly those in automotive, defence and aerospace supply chains with strict supplier qualification requirements — confidence in our manufacturing consistency.
Our facility is structured to support both custom, low-volume tooling orders — common for profile broaches, gauges and replacement tooling — and recurring high-volume production requirements from automotive and tractor OEM customers who require consistent, scheduled deliveries of standard spline, keyway and internal broaches. This flexibility allows United Broach to serve as a single tooling partner across a customer's full range of requirements, from prototype development through to high-volume production support.
United Broach manufactures and supplies tooling to international customers, with documentation, packaging and inspection records prepared to meet the incoming-inspection requirements common in overseas automotive and industrial supply chains. Our infrastructure and quality systems have been built with this export-readiness in mind from early in the company's history.
As customer requirements evolve — whether toward tighter tolerances, new spline standards, or higher production volumes — United Broach continues to invest in grinding, coating and inspection infrastructure to keep pace. This ongoing investment is central to our ability to support long-term tooling partnerships across automotive, tractor, transmission, defence, aerospace and heavy engineering customers.
A closer look at the machines, tooling and quality control processes behind every broach we ship.

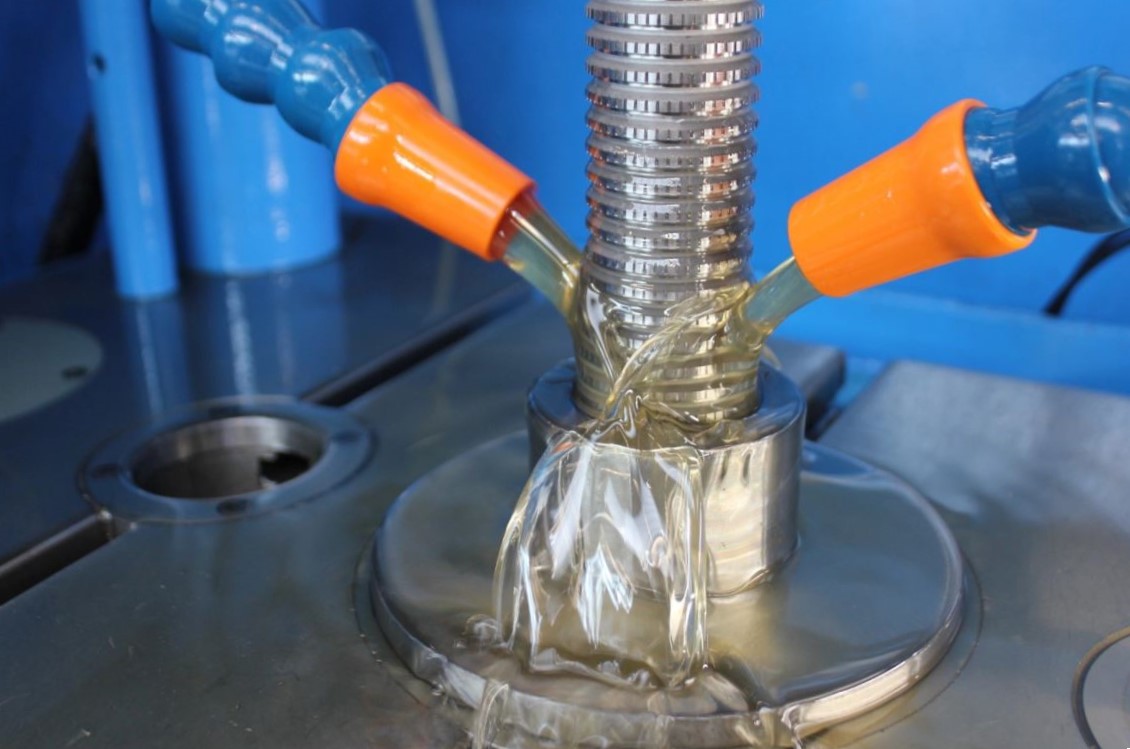

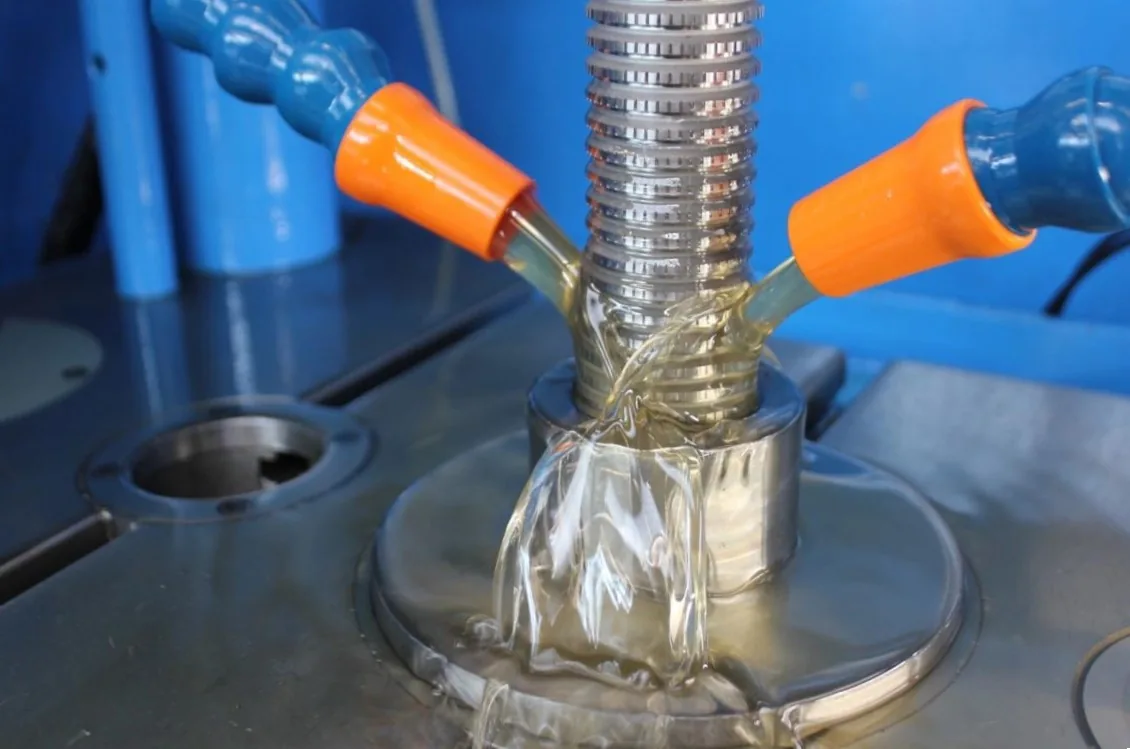

Precision spline profiles generated under continuous coolant flow for accuracy and tool life.

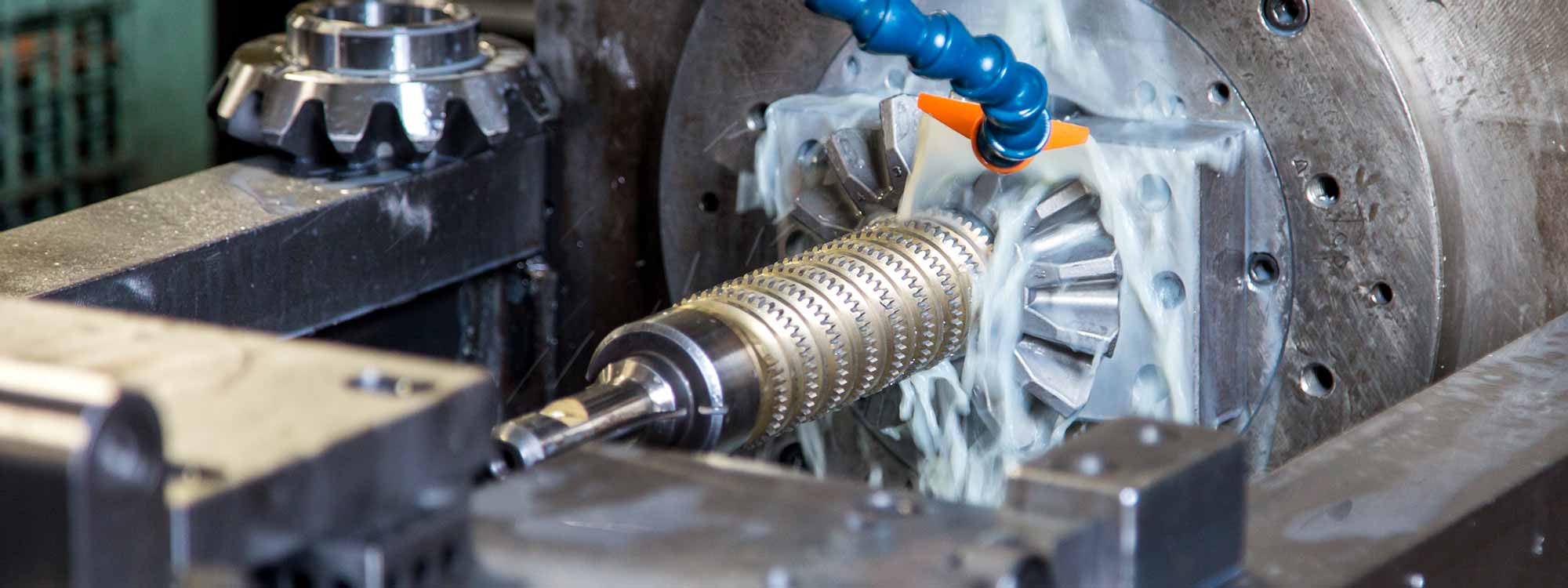

CNC grinding restores and refines broach tooth geometry to drawing tolerance.

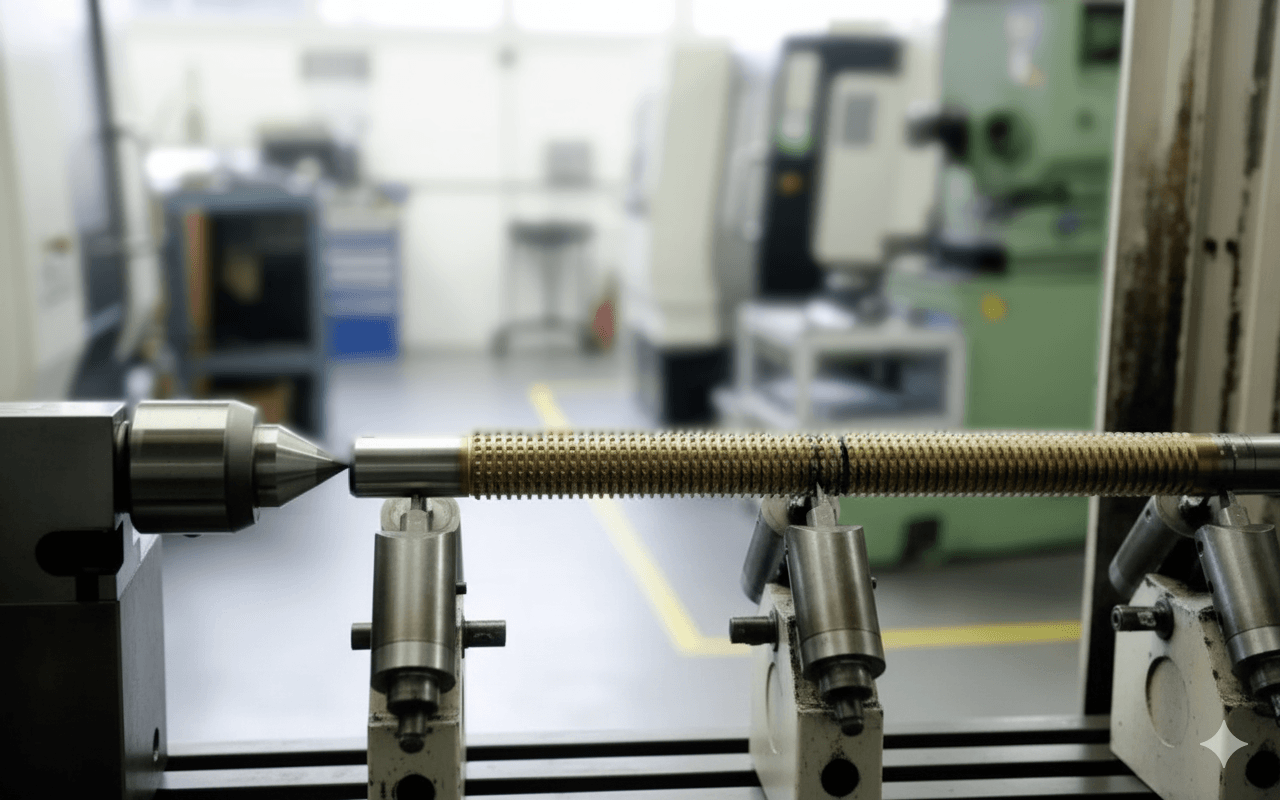

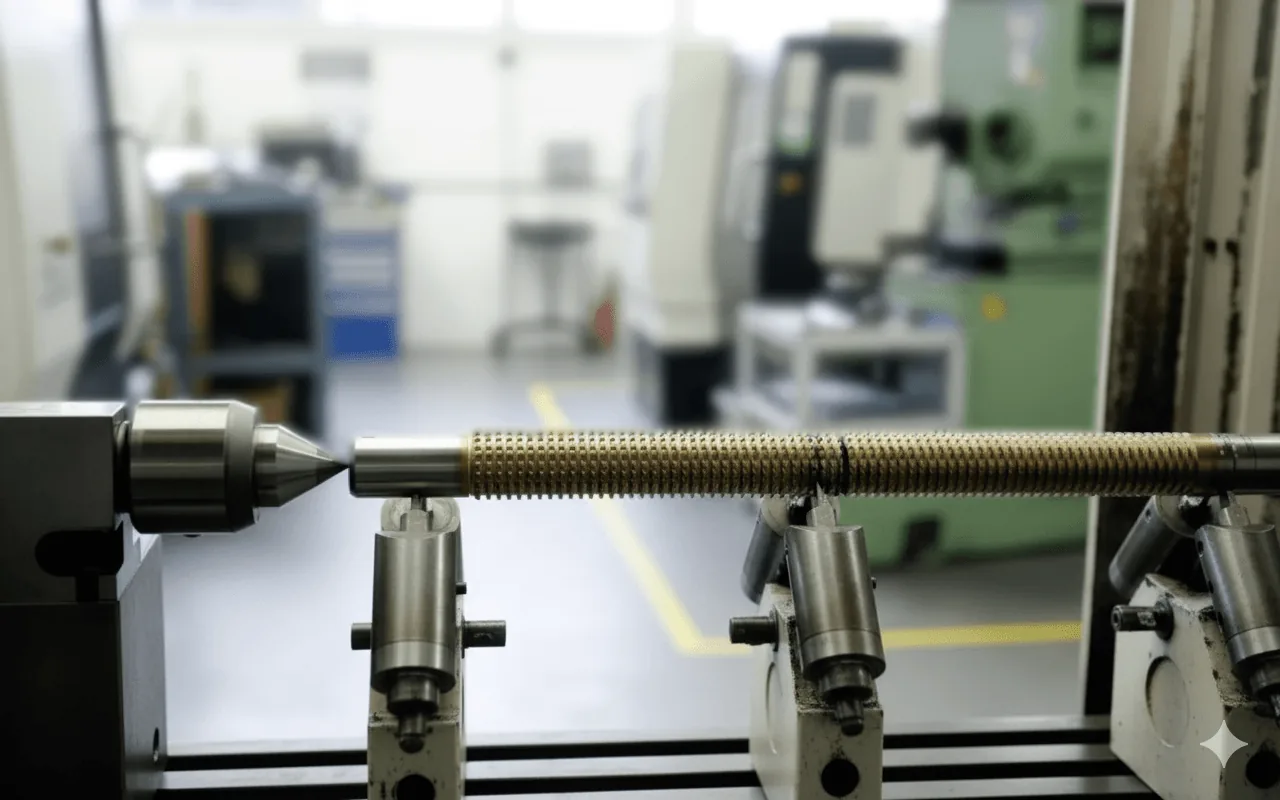

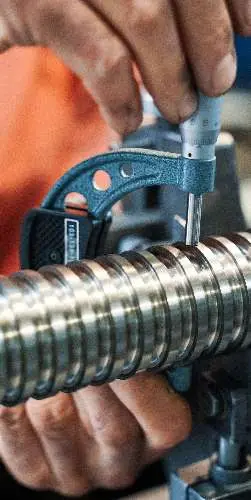

Every critical dimension is verified manually with height gauges, micrometers and profile projectors.

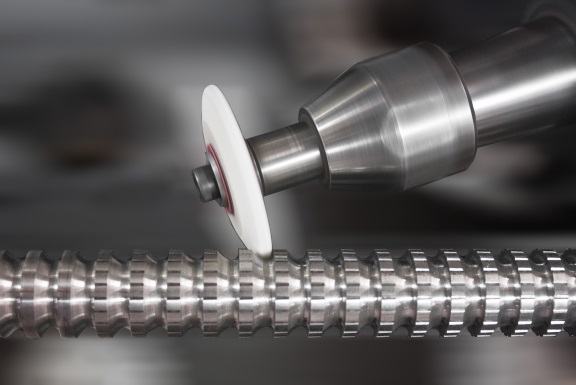

Final grinding passes deliver the smooth, accurate surface finish our customers require.

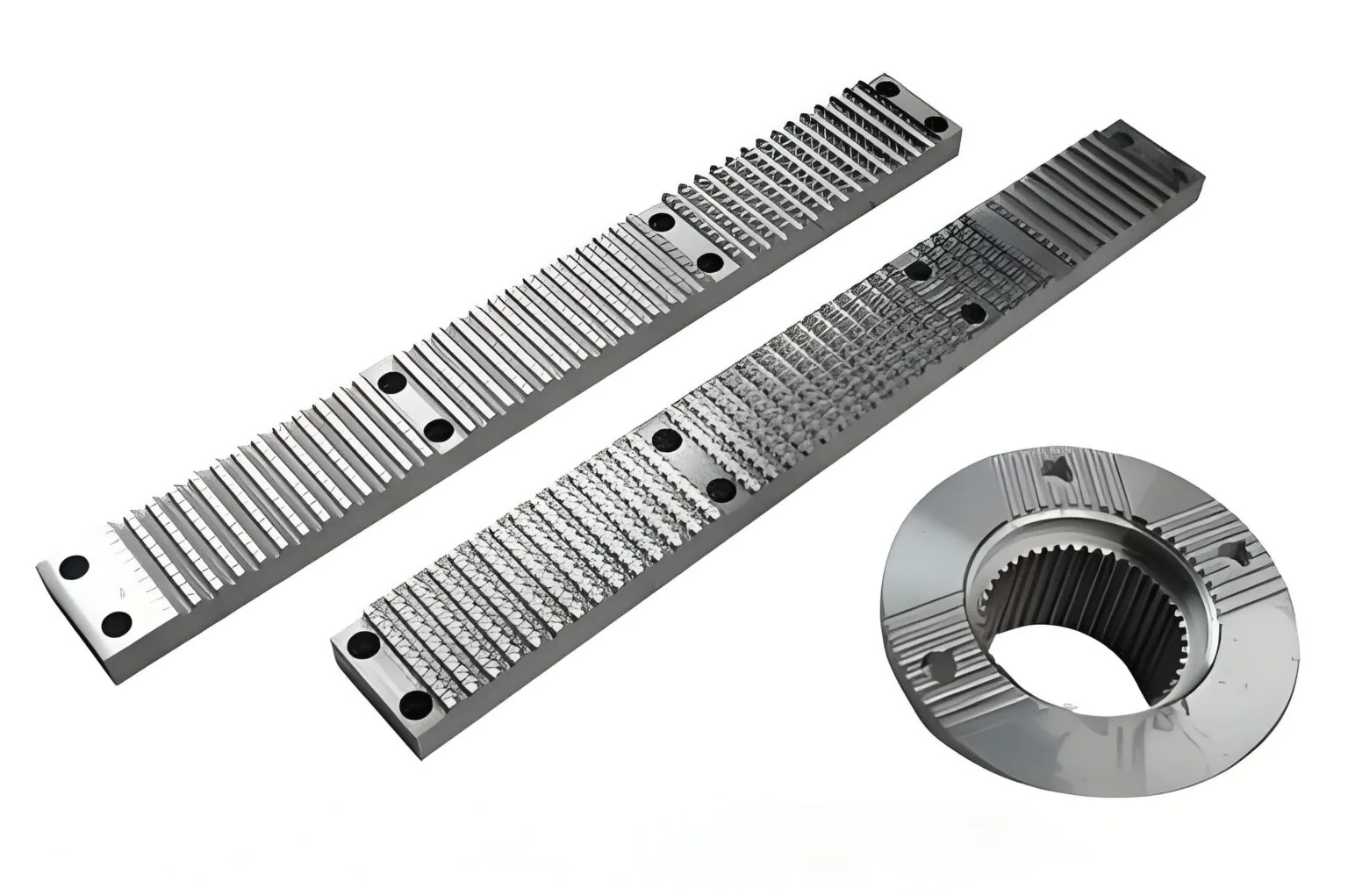

Multi-piece segment broaches engineered for large-diameter internal spline components.

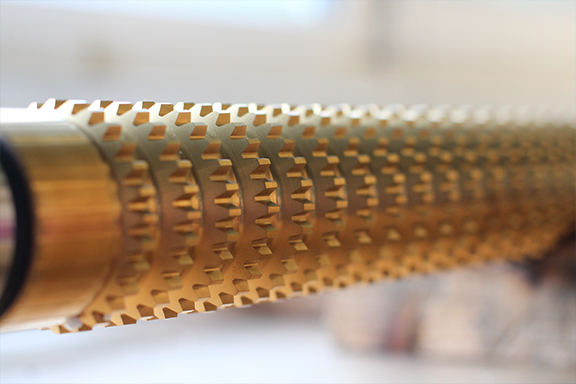

TiN and TiAlN coatings applied for extended tool life on high-volume production runs.
Core manufacturing and quality control capability at our Patiala facility.
| Capability | Details |
|---|---|
| Facility Location | D-220, Focal Point, Patiala, Punjab, India |
| Certification | ISO 9001:2015 |
| Established | 2005 |
| Grinding Capability | CNC Profile Grinding, Dedicated Spline Grinding |
| Coating Capability | PVD Coating (TiN, TiAlN) |
| Inspection Equipment | Profile Projectors, Gear Tooth Verniers, Height Gauges |
| Services | New Manufacturing, Reconditioning, Gauge Calibration |
| Markets Served | Domestic India & International Export |
Manufacturing capability translated into tangible customer benefits.
CNC grinding ensures consistent profile accuracy across production batches.
PVD coating capability for wear resistance on demanding applications.
Full dimensional inspection on every tool before dispatch.
Dedicated capability for restoring worn tooling investment.
Documentation and quality systems aligned with overseas requirements.
Capacity for both custom orders and high-volume OEM requirements.
Infrastructure supporting precision tooling across critical manufacturing sectors.
Infrastructure investment that translates directly into manufacturing reliability.
Structured quality management across our complete manufacturing process.
Consistent profile accuracy across every production batch.
Multi-instrument dimensional verification on every tool.
Infrastructure built for international supplier requirements.
Production planning supporting consistent, on-time delivery.
Manufacturing, coating, reconditioning and gauge calibration in one facility.
Common questions about our manufacturing infrastructure and facility.
Our ISO 9001:2015 certified manufacturing facility is located at D-220, Focal Point, Patiala, Punjab, India — an established industrial hub for precision engineering and tooling manufacturing in northern India.
Our facility is equipped with CNC grinding machines for profile generation on broaches, dedicated spline grinding setups, and supporting machine tools for the full manufacturing sequence from raw material to finished, inspected tooling.
We offer PVD coating solutions including TiN and TiAlN coatings, applied to enhance wear resistance and extend tool life on broaches and other cutting tools manufactured or reconditioned at our facility.
Our inspection process uses optical profile projectors, gear tooth measuring instruments, height gauges, micrometers and coordinate measuring equipment to verify dimensional accuracy on every tool before dispatch.
Yes. United Broach is an ISO 9001:2015 certified manufacturer, reflecting a structured quality management system covering design review, production control, inspection and customer feedback handling.
Yes, we welcome customer visits to our Patiala facility for technical discussions, supplier audits, or to review production capability firsthand. Please contact our team in advance to schedule a visit.
Our production capacity supports both prototype/low-volume custom tooling orders and recurring high-volume production requirements for automotive and tractor OEM customers. Contact our technical team with your specific volume requirement for a capacity assessment.
Yes. We manufacture and supply broaching tools and gauges to international customers, maintaining export-grade quality documentation and inspection standards to meet overseas incoming-inspection requirements.
